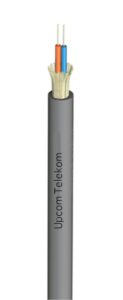

ftth-indoor drop cable-2x1
I-V(ZN)H Drop

Drop Fiber Cable round is the ideal for FTTh applications. Due to its compact and dry design it is easy to install and direct termination, where space is limited it is perfect and economic solution. The 900µm tight buffers are individually colored and surrounded by aramid yarns up to max 4FO. Depending on the transmission rate required and the distance to be covered, either multimode fibers with various specifications or single mode fibers are used for these cables. To comply with the strict fire safety requirements for indoor applications, cables with halogen-free and flame-retardant cladding are required, since these ensure that a fire is not propagated further along cables, and that cables do not produce corrosive or toxic gases.

Compliance

  • DIN VDE 0888 Part 6; IEC 61034; IEC 60332-2; IEC 60754-2; IEC 60794-1&2

Application

  • Indoor application
  • Intrabuilding Voice or Data Communication Networks
  • Indoor (and Protected environments)
  • Direct Connection to Terminal Equipments
  • Drop Cabling in Ftth Cabling
  • Vertical Riser and General Horizontal Applications
  • LAN

Features and Benefits

  • Easy to Strip
  • Direct Termination
  • Enforced with Non-Metallic Strength Member
  • Complete Dry Design
  • All Dielectric
  • Halogen Free Fire Retardant / Low Smoke Zero Halogen
  • Flexible
  • Drop Small Diameter
  • Light Weight

Specification

Fibers124
Strength membersAramid Yarns
Tight jacketLSZH
Outer jacketLSZH
Tight Buffer Jacket Ø (µ)900±50
Optical Characteristics  9/125 G.652-D9/125 G.657A19/125 G.657A
Bandwidth (nm)
Attenuation (max dB/km)
 1310/15501310/15501310/1550
 0.35/0.250.34/0.240.34/0.22
Weight (Kg/Km)4.49.5013.5
Outer Ø (mm)2.403.003.5
Tensile Load Perm / Inst (N)150/300200/400300/600
Crush (N/10cm)200 (IEC 60794-1-2 E3)
Temperature Range-10 ºC to +60 ºC (IEC 60794-1-2 F1)
Min. Bending Radius20 x Outer Ø (IEC 60794-1-2 E11)
