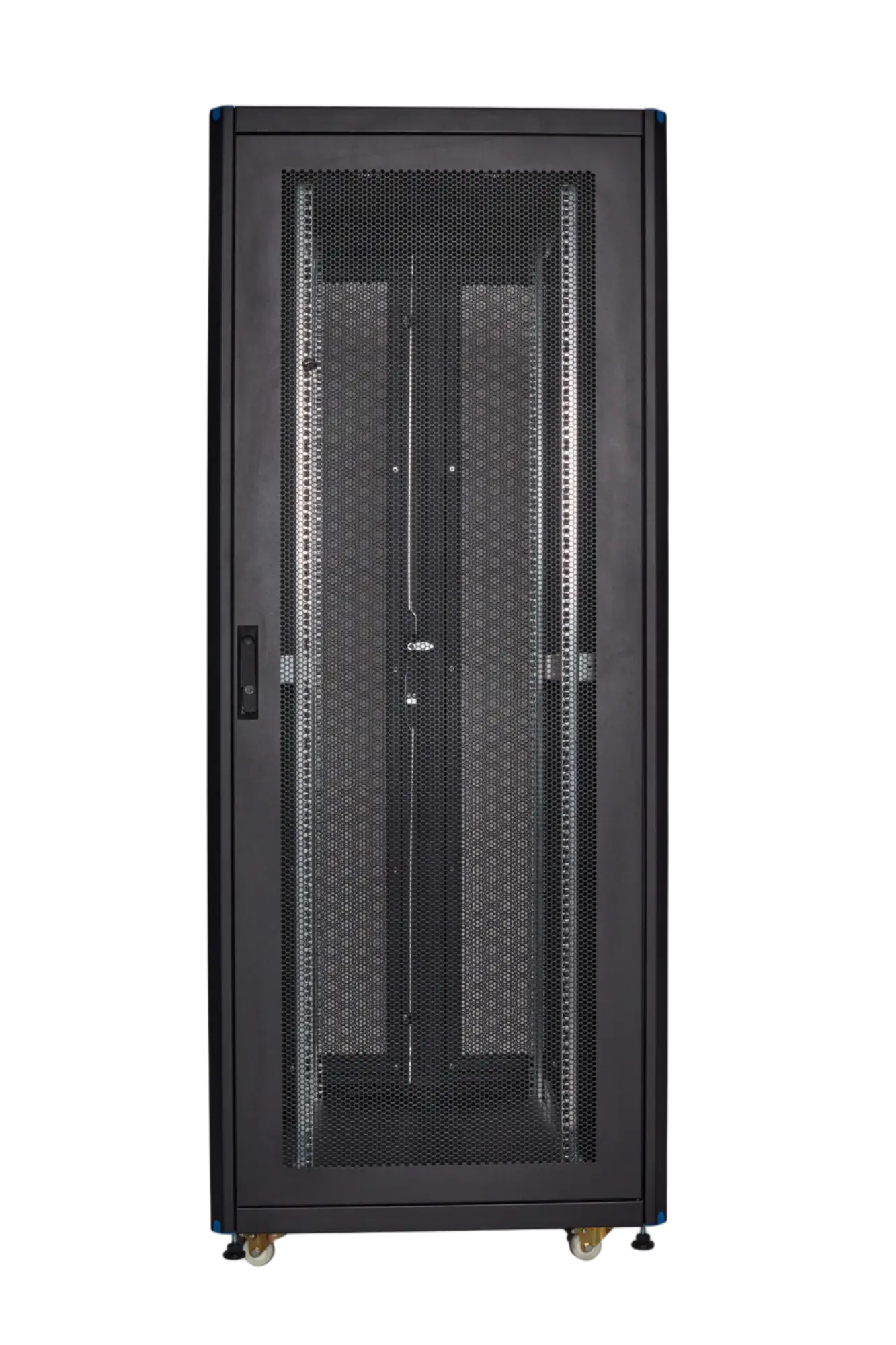

FS Line Server Rack Cabinet 19 inch is built for server rooms and data center environments where airflow, security and load capacity are non-negotiable. Perforated front and rear doors support consistent cooling, the 3-point locking system keeps equipment protected, and adjustable 19-inch rails make installation straightforward for servers, switches, patch panels and PDUs.

Key Specifications

• Rack standard: 19 inch (EIA-310 compatible)

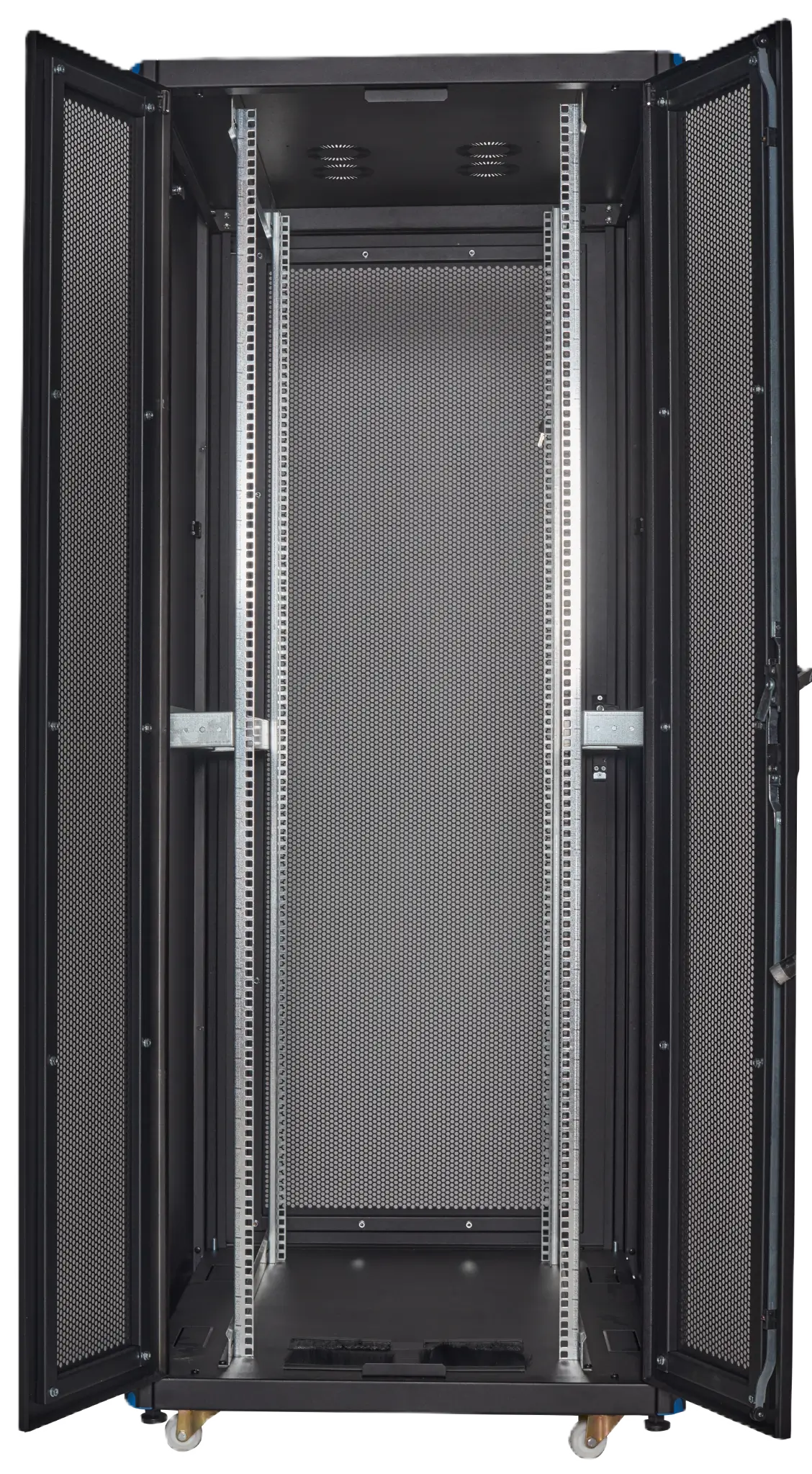

• Doors: perforated front & rear doors (standard 65%, optional up to 80%), handled, 3-point locking
• Rails: 4 pcs adjustable 19-inch mounting rails (front & rear)
• Cable entry: top & bottom cable entry points
• Side panels: lockable split side panels for fast service access
• Finishing: electrostatic powder coating
• Colors: RAL 9005 Black / RAL 7035 Light Grey
• Protection: IP20 as standard (IP-rated versions on request)

Configurations

FS Line Server Series is configurable by height (U), width and depth. Typical options:

• Heights: 12U, 15U, 16U, 19U, 20U, 25U, 27U, 30U, 33U, 35U, 37U, 39U, 42U, 45U, 47U
• Width & Depth: 600×600, 600×800, 600×1000, 800×800, 800×1000 (mm)

For compatibility and rack fundamentals, see: 19” Rack Cabinet Standard and the general definition of a 19-inch rack.

Construction Details

• Frame: high-strength steel structure designed for IT loads and long service life
• Load options: 800 kg standard structure, 1200 kg heavy-duty option available (depending on configuration)
• Airflow-ready: perforated doors and airflow-friendly layout for server cooling
• Service access: 4-way access design for installation and maintenance

Drawing

Applications

• Data centers and server rooms (structured cabling + high-density racks)
• Telecom rooms and network closets
• Industrial IT rooms where secure enclosure and airflow are required
• Education and enterprise IT infrastructure deployments

Compliance

FS Line server cabinets are designed for 19-inch rack environments and commonly referenced standards for IT enclosures. Where needed, project compliance can be aligned with local regulations and customer specifications.

• 19-inch rack compatibility: EIA-310
• IP protection: IEC 60529 (IP Code) (IP20 standard, higher IP on request)
• Mechanical structures / tests: EN 61587-1 family (project dependent)

How to Choose the Right Server Rack Cabinet

1. U height: calculate total rack units, then add spare capacity for growth (42U is a common baseline).
2. Depth: match the deepest server plus cable bend radius (1000–1200 mm for deep server builds).
3. Width: choose 800 mm when side cable routing and airflow clearance matter; 600 mm for tight spaces.
4. Door perforation: higher perforation improves airflow for dense server loads.

Safety & Maintenance

• Do not exceed the selected configuration’s load capacity.
• Keep airflow paths clear; clean perforations and filters on a maintenance schedule.
• Check grounding/bonding and cable routing after every major change.
• Lock doors and side panels to prevent unauthorized access.
