OS1 vs OS2 fiber: what the categories mean

OS designations describe single-mode cabling categories. Both carry light through a small glass core surrounded by cladding; choosing OS2 does not mean changing from multimode to single-mode. For the wider terminology, start with the fiber optic cable overview.

OS1, OS1a and low-water-peak performance

Legacy OS1 specifications use a maximum attenuation of 1.0 dB/km at 1310 and 1550 nm. OS1a extends the wavelength requirement to include 1383 nm. OS2 uses a lower maximum of 0.4 dB/km at 1310, 1383 and 1550 nm. These are category limits, not measurements of every cable on the market.

The distinction at 1383 nm matters when the optical system uses wavelengths around the water-peak region. For an older link, an OS1 label alone does not establish its loss at every wavelength. Read the original specification and test documentation before adding wavelength-dependent services.

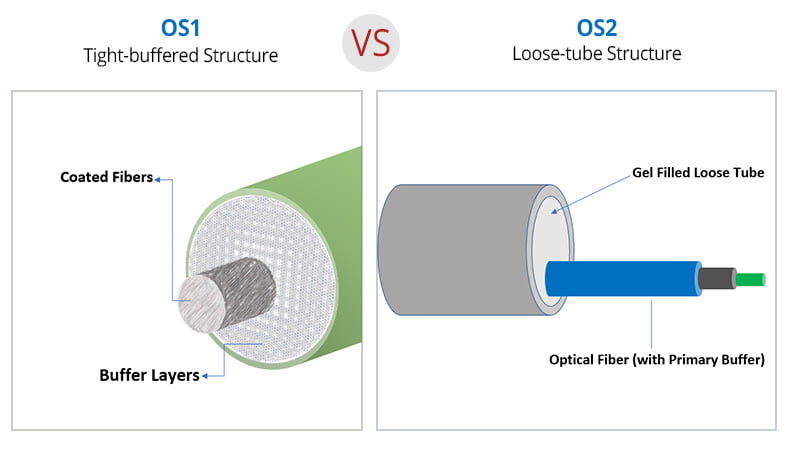

OS1 vs OS2 fiber comparison

Category and construction background: CommScope's technical explanation.

The fiber core and the cable are different specifications

The common shorthand “9/125” refers to single-mode core/cladding dimensions. The core is approximately 9 µm, while the cladding is nominally 125 µm. Precise mode-field diameter depends on fiber type and wavelength. Coating, buffer, tube, strength members and outer sheath are additional layers; they should not be confused with the glass core.

A tight buffer supports the coated fiber closely, often using a nominal 900 µm buffer for handling and termination. A loose tube provides space around the coated fibers and can be combined with water-blocking materials. Neither arrangement, by itself, identifies OS1 or OS2. Indoor OS2 tight-buffered cables are available.

Choose the design through the tight-buffered and loose-tube cable guide. UV resistance, water penetration, jacket performance, temperature range and mechanical ratings remain separate purchasing requirements. See the FOA optical fiber reference for glass, coating and size terminology.

OS2, G.652.D and G.657 are related, not interchangeable

An OS category is a cabling performance designation. An ITU-T designation identifies the characteristics of the optical fiber and cable covered by that recommendation. Ask for both where the project needs both; one label does not provide the entire specification.

• G.652.D: commonly specified for low-water-peak single-mode network cables.
• G.657: addresses bending-loss-insensitive single-mode fiber. The subcategory matters when assessing compatibility and bending performance.
• OS2: verify the finished cable's optical performance declaration rather than assuming that every G.652 or G.657 option automatically satisfies the same category limits.

Bend-insensitive glass does not permit arbitrary bending of the complete cable. The cable manufacturer still defines the minimum bend radius during installation and in service. Strength members, tube layout and sheath can determine the practical limit.

Primary references: ITU-T G.652 and ITU-T G.657.

OS1 vs OS2 fiber in a loss budget

The attenuation coefficient is multiplied by length. Connectors, splices and other optical components add loss; the design also needs a reserve margin. This is why an OS label cannot promise a universal distance or data rate.

Consider a 5 km point-to-point route at 1310 nm. Assume two mated connection pairs at 0.5 dB each, four splices at 0.1 dB each and a 2.0 dB reserve. Those allowances are chosen for this example; replace them with the project's specified values.

The 3.0 dB difference comes entirely from the assumed cable attenuation. Verify the optical module's supported distance, wavelength, power budget and applicable dispersion constraints as well. For PON routes, include splitters and every other passive loss. Use the fiber optic loss guide when assembling the measured and specified inputs.

Choose single-mode cable by route and installation method

For new links, evaluate an OS2 specification when lower guaranteed attenuation and future optical applications matter. For an existing OS1 link, first inspect its records and measure the channel. Replacement should follow an actual performance or route requirement, not the category name alone.

• Inside a building: select suitable fire performance, termination arrangement, bend radius and optical grade. OS2 can be used indoors.
• Between buildings: require the cable's documented water, UV, temperature and mechanical ratings. OS2 alone does not establish those properties.
• FTTH: coordinate fiber type, split ratio, loss budget, connectors and route protection. The FTTH deployment guide covers the broader network choices.
• Microduct installation: confirm a cable designed for blowing, its diameter, stiffness and jacket compatibility with the duct and equipment. An optical category does not establish blowing suitability.

The fiber optic cable blowing guide covers installation planning. Specify the required fire classification separately using the CPR cable guide.

Read the UPCOM cable datasheet before choosing the grade

The UPCOM cable category is the commercial starting point. Product families then provide construction and ordering information; confirm the chosen fiber option and finished-cable attenuation in the quotation.

Tight-buffer construction example

The I-A-V(ZN)H(BN)H tight-buffer cable datasheet lists a nominal 900 µm buffer and single-mode G.652.D / G.657A options alongside multimode options. Its single-mode attenuation entries are below the broad 0.4 dB/km ceiling at the two listed wavelengths. The document does not provide a 1383 nm attenuation row, so those entries alone should not be presented as a complete OS2 conformity declaration.

Read the tight-buffer cable datasheet (PDF).

Loose-tube construction example

The I-A-DQ(BN)H-MLT multi loose-tube family uses colored PBT tubes, water-swellable tape and an LSZH outer sheath. The published family range is 4–192 fibers. Fiber options and mechanical characteristics must be confirmed for the ordered configuration; family-level figures do not replace a selected SKU's test limits.

Read the multi loose-tube cable datasheet (PDF).

OS1 vs OS2 fiber specification and acceptance checklist

1. Optical requirement: category, standard edition, ITU-T fiber subcategory and maximum cabled attenuation at each required wavelength.
2. Cable requirement: fiber count, construction, sheath, route exposure, fire performance, outside diameter and temperature range.
3. Installation requirement: pulling or blowing method, allowable tension and bend radii during installation and in service.
4. Connection requirement: splice plan, connector type and polish, patching arrangement and component loss allowances.
5. Acceptance requirement: insertion-loss method, wavelengths, pass/fail limits, identification records and OTDR evidence where specified.

Compare bids against the same requirements. After installation, retain the cable part number, route length, splice schedule and test results with the network records. Follow the fiber cabling installation practices guide for the wider handover workflow.
