IP55 Outdoor Cabinet: A Practical Selection Guide
An IP55 outdoor cabinet is a viable choice when its construction, cooling and cable entries match the site. The rating describes dust and water ingress protection; it does not establish suitability for every exposed location. Specify the environment and installed equipment before choosing the enclosure.
This guide covers rack sizing, thermal management, sealing, installation and the information needed for an accurate quotation.
IP55 outdoor cabinet protection: what the code means
The two digits describe different tests under IEC 60529. In IP55, the first 5 means dust protected: limited ingress is permitted, provided it does not impair satisfactory operation or safety. The second 5 means protection against water jets under the specified test conditions.
| Rating | Dust protection | Water protection |
|---|---|---|
| IP55 | Dust protected; limited ingress allowed | Water jets |
| IP65 | Dust tight | Water jets |
| IP66 | Dust tight | Powerful water jets |
None of these ratings establishes immersion protection. An IP55 enclosure is also not airtight. Water vapour, condensation, corrosion, solar heating and impact resistance need separate consideration. The nVent HOFFMAN technical reference covers ingress protection and environmental factors separately.
For the broader comparison, read the IP55 vs IP66 cabinet guide. This page concentrates on specifying and operating an IP55 installation.
Site exposure, materials and construction
A dusty factory floor, a covered loading area and a roadside telecom site can require different cabinets. Record direct rain, wind-driven dust, washdown, salt exposure, ambient temperature and access restrictions. “Outdoor” alone leaves too much undefined.
For a covered industrial installation, the IP55 free standing enclosure can be assessed against the project conditions. At a fully exposed site, check the roof, drainage, finish and sealing as well as the required IP rating. A higher rating does not compensate for unsuitable materials or poor installation.
What to check in the construction drawing
- Water shedding: roof overhang, runoff paths and whether water can collect beside a door gasket.
- Finish: substrate, coating system and suitability for the local atmosphere. A colour code does not describe corrosion performance.
- Door and panels: gasket contact, locking points and access for replacing seals.
- Wall construction: single or double wall, insulation and the resulting usable internal space.
Double-wall construction can reduce the effect of solar exposure, but it does not remove heat generated by the equipment. Use a thermal assessment to decide whether ventilation or active cooling is required. Rittal's outdoor enclosure design notes explain why construction and climate management belong alongside the IP specification.

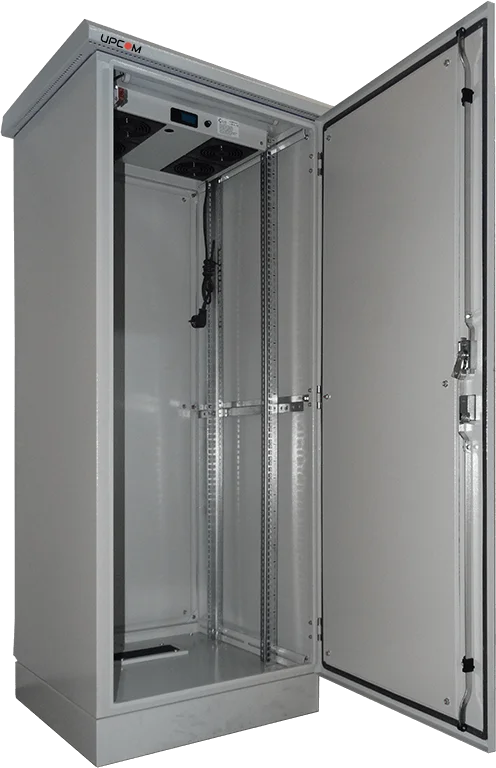

Rack size, usable depth and load
The 19-inch format identifies the rack equipment interface. It does not mean that the cabinet body is 19 inches wide. Similarly, U height describes mounting space, while the external height includes the cabinet structure and any plinth. See the 19-inch rack dimensions guide for the measurement conventions.
Size from the installed equipment outward. Add clearance for rear connectors, cable bend radii, power distribution, optical termination and service access. A device that fits the nominal depth may still leave no room to connect or replace a cable.
| Item | Datasheet information | Confirm before ordering |
|---|---|---|
| Rack family | 15U to 42U in the product description | Usable U height for the selected code |
| Nominal W × D | 600 × 600, 600 × 800, 800 × 600, 800 × 800, 800 × 1000 and 800 × 1200 mm | External dimensions and usable depth |
| Structure | Fully welded steel framework; adjustable front/rear 19-inch profiles | Rail positions and equipment mounting |
| Base module | 100 mm high | Total height, anchoring and cable access |
| Published load | 1200 kg evenly distributed enclosure load | Floor capacity, fixing and individual shelf ratings |
The IP55 enclosure datasheet (PDF) also contains an extended ordering table with other external dimensions. Do not infer a U height from an external millimetre value; use the final configuration drawing.
Reserve space for the rack PDU and fiber optic patch panels during layout design, rather than adding them after the cabinet is filled.
Cooling an IP55 outdoor cabinet
Start with equipment heat dissipation in watts, the worst-case ambient temperature and the maximum permitted internal temperature. Include solar gain where the cabinet receives direct sunlight. U height and fan count cannot answer the cooling question on their own.

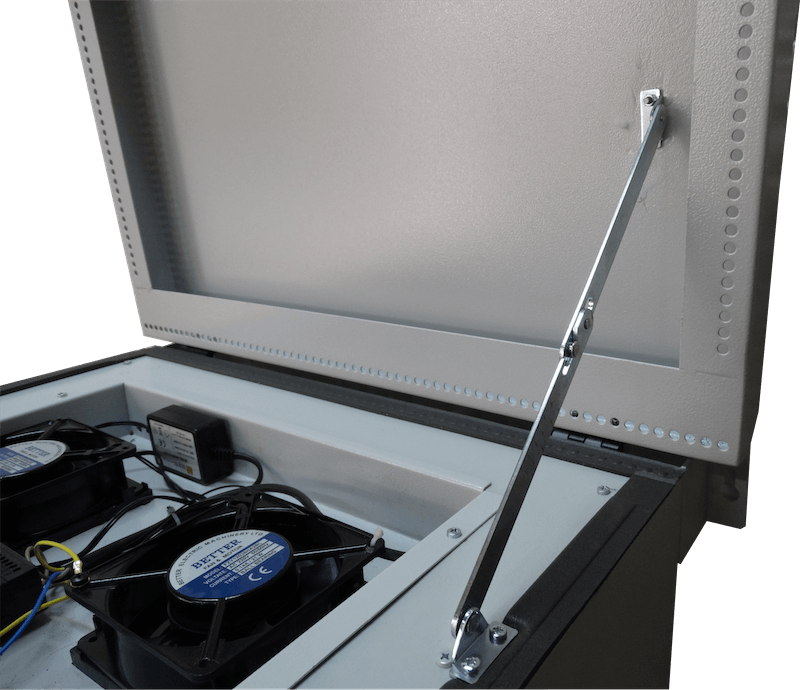

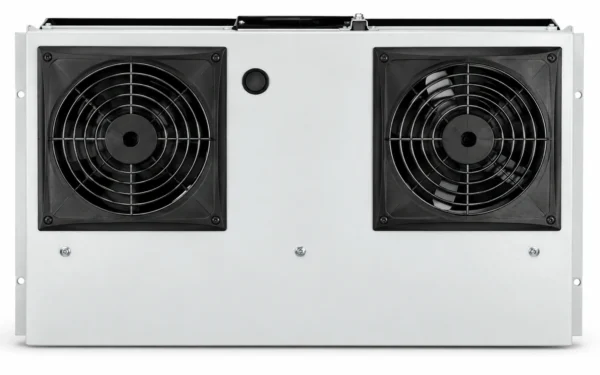

Fan and filter ventilation
Ventilation uses ambient air to carry away heat. It cannot hold the cabinet below the temperature of the incoming air. Filters, grilles, airflow restrictions and dust loading affect the delivered airflow, so the fan's free-air figure is not the installed result.
A fan opening does not automatically invalidate an IP rating, and fitting a high-rated filter does not automatically preserve it. The cabinet, fan/filter assembly, mounting cut-out and seals must work as a verified configuration.
Active cooling and condensation control
Assess a closed-circuit cooling arrangement when ambient temperature, contamination or the required internal temperature makes ventilation unsuitable. Match the cooler's capacity at the design conditions; nominal cooling output and electrical input power are different figures.
Condensation can occur inside a cabinet even when no rain enters. Temperature changes and humid air can bring internal surfaces below the dew point. A heater, hygrostat or other humidity-control arrangement may be needed; insulation alone is not a complete solution.
Use the outdoor cabinet cooling selection guide for the sizing process. For a project requiring an air-conditioned enclosure, review the outdoor telecom cabinet with AC and confirm the protection of the complete installed assembly.
Outdoor cabinet installation and sealing

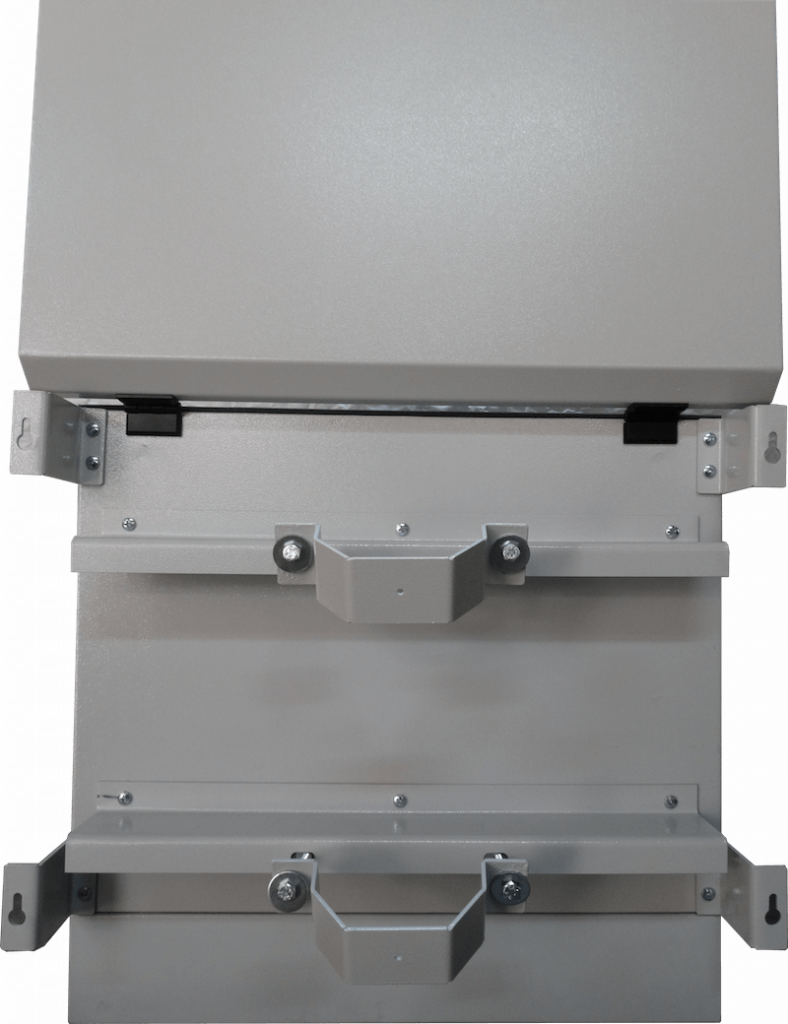

- Verify the mounting arrangement. Check the foundation, floor or supporting structure, cabinet weight, anchoring and maintenance clearances. Wall and pole mounting require a cabinet and hardware approved for that installation.
- Inspect the enclosure before fitting equipment. Check transport damage, panel alignment, door closing and gasket contact. Remove debris from sealing surfaces.
- Plan cable entry. Select glands against cable outside diameter and the required protection. Seal unused openings with suitable blanking components; an open spare hole defeats the enclosure design.
- Fit the equipment and accessories. Distribute weight as specified, keep cooling paths clear and leave access to cable terminations. Bond the cabinet and removable conductive panels according to the installation requirements.
- Commission the complete assembly. Check locks, fans or cooler, controls and cable seals. Record internal temperature with the intended operating load and retain the drawings and accessory list.
Field-drilled holes, replacement cooling units and different gland plates can change the protection achieved. Record modifications and obtain confirmation for the revised assembly rather than relying on the rating of the original empty cabinet.
Maintenance and access
Specify how a technician will change a filter, fan, seal or cooling unit without dismantling the installed network. Check door swing, top access and the clearance around the cooler before finalising the site layout.
- Inspect filters for clogging and replace or clean them as instructed for the selected filter type.
- Check fan operation, controller settings and abnormal temperature readings.
- Inspect gaskets, hinges, locks, cable glands and unused-entry seals.
- Remove obstructions from runoff paths and check for standing water or coating damage.
Set the inspection interval from the actual site conditions and equipment instructions. A universal annual filter replacement schedule is unsuitable for both a clean sheltered site and a dusty industrial location.
Compare the UPCOM enclosure families
The IP55 industrial enclosure and Guard Box are separate product families. Their dimensions and mounting options should not be combined into one specification.
| Family | Published size reference | Selection focus |
|---|---|---|
| IP55 free standing enclosure | 15U–42U; nominal width/depth combinations listed above | Industrial equipment space, distributed load, sealing and cooling |

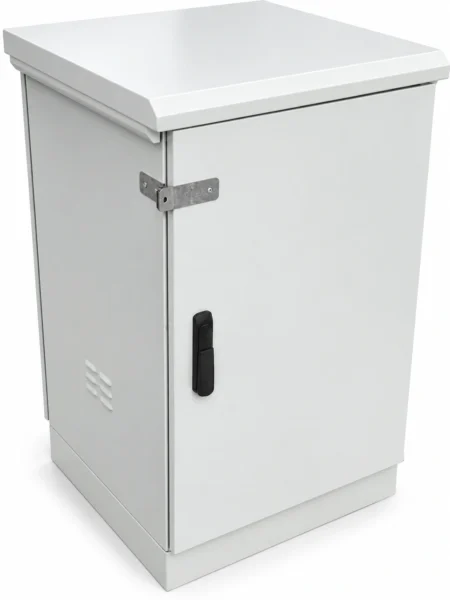

| Guard Box IP66 | 7U, 9U, 12U, 16U, 20U; 600 mm width; 450 or 600 mm depth | Wall or field type; single/double layer; separately specified pole accessories |
| Outdoor telecom cabinet with AC | 600 × 600 mm footprint; 7U, 9U, 12U, 16U, 20U | Equipment heat load, cooler selection, sealing and service clearance |
The Guard Box datasheet (PDF) lists the mounting and wall-construction codes. Browse the rack cabinet range when comparing the wider equipment layout.
Cost and procurement checks
Compare quotations for the same assembly. A low cabinet price can exclude the plinth, glands, mounting hardware, fan/filter set, controller, PDU or cooling unit needed to make the installation usable.
Request a clear included/excluded list and an agreed drawing. For delivery planning, use packed dimensions and gross weight; external cabinet dimensions do not include the pallet, protective packing or protruding accessories. Larger depth can increase both material cost and freight volume even when the U height stays the same.
Procurement rule: compare the configured enclosure, delivered cost and service access together. Avoid choosing a cheaper empty shell that requires unverified cut-outs or costly site modifications.
Ask for documentation for the selected configuration, including ingress protection, load limits and any project-specific impact or environmental requirements. A generic list of standards on a catalogue page is not evidence that every option has been tested to every listed standard.
Outdoor cabinet RFQ checklist
An enquiry should identify the site and equipment as clearly as the cabinet size. Send the following information, or mark the fields where you need selection support.
- Equipment: usable U height, device depth, total weight and rack layout.
- Site: indoor industrial, sheltered outdoor or fully exposed; ambient range, sun, dust, rain and salt exposure.
- Mounting: floor, wall or pole; foundation details and available service clearance.
- Thermal requirements: heat dissipation in watts, target internal temperature, fan/filter or AC preference and condensation concerns.
- Construction: door/lock, wall construction, finish, cable entry sizes, glands and spare openings.
- Commercial details: quantity, destination, requested delivery time and required drawings or test documentation.
Specify the enclosure for your project
Use the product-page Request a Quote form with your quantity, delivery country and technical requirements. UPCOM can assess the configuration against your site specification.
FAQ
Is an IP55 outdoor cabinet waterproof?
IP55 provides dust protection and protection against water jets under specified test conditions. It does not establish immersion protection or suitability for every outdoor site. Check construction, cooling, cable entry and the local exposure.
Does adding a fan automatically reduce the IP rating?
No. A correctly specified fan/filter assembly can preserve the required protection, but the complete installed configuration must be verified. An unqualified cut-out or a poorly sealed fitting can reduce the protection achieved.
Can an IP55 cabinet develop condensation?
Yes. An ingress protection rating does not prevent water vapour or condensation. Assess temperature changes, humidity and internal surface temperatures, then specify suitable humidity or thermal controls where needed.
Are the UPCOM IP55 enclosure and Guard Box the same cabinet?
No. The IP55 free standing family is described as 15U–42U. Guard Box is a separate IP66 family with 7U, 9U, 12U, 16U and 20U options, 600 mm width and 450 or 600 mm depth. Confirm dimensions and mounting against the selected code.
What information is needed to choose cabinet cooling?
Provide equipment heat dissipation in watts, worst-case ambient temperature, target internal temperature, solar exposure and contamination conditions. Ventilation cannot cool below incoming air temperature; active cooling must be selected at the design conditions.
